SONO M660 Ultrasonic Thickness Gauge

ATTENTION! When placing an order, please select:

• the appropriate type of ultrasonic probe  above the "add to cart" button,
• the type and color of the silicone cover  above the "add to cart" button,

Click here to select additional ultrasonic probes.

Click here to choose additional silicone covers or couplant gel.

Measuring ranges of ultrasonic probes:

• ultrasonic probe MPE7 7MHz from 0.7 - 200 mm PE*,
• ultrasonic probe MPE5 5MHz from 1.0 - 600 mm PE*,
• ultrasonic probe MEE5 5MHz from 2.0 - 600 mm PE* and 2.5 - 100mm EE*,
• ultrasonic probe MPE2 2.5MHz from 3.0 - 300 mm (damping materials, plastics) PE*,
• ultrasonic probe MHT5 5MHz from 1.5 - 600 mm (high temperatures max 300 ⁰C) PE*.

Measurement of wall thickness of pipes with a diameter of ≥ 15mm  with the MPE7 ultrasonic probe*.

 *  measuring ranges in relation to reference steel,

PE - Pulse-Echo measurement mode - standard measurement,

EE - Echo-Echo measurement mode - measurement without protective coating, corrosion.

Description

The SONO M660 ultrasonic thickness gauge is a modern measuring instrument that combines the opinions and expectations of our customers and many years of experience of Metrison in the design and production of measuring devices. The thickness gauge has been developed for a wide range of customers, and with its advanced measuring functions and rich equipment, it is predisposed for use in research and development units, laboratories, inspection units, directly in production and services.

The SONO M660 thickness gauge works with 5 types of ultrasonic probes and is designed to perform precise, fast and non-destructive thickness measurements of flat and profiled materials, and especially wall thickness measurements of components accessible from one side, such as tanks, pipes, ship hulls, other closed structures. Using a properly selected ultrasonic probe, the thickness gauge allows to measure the thickness of elements made of various materials, including those covered with a protective layer or corroded. It is particularly useful to use a thickness gauge to analyze the state of wall thickness when the tested objects are in continuous operation, eg tanks containing harmful substances, pipelines, boilers operating under pressure and at high temperatures up to 300 ⁰C.

The SONO M660 ultrasonic thickness gauge is distinguished by advanced functions, a wide measuring range from 0.7mm to 600mm, a color display, an intuitive menu, easy operation, housing protected by a silicone cover, resistant to difficult working conditions. The modern design of the gauge allows the ultrasonic wave velocity to be smoothly adjustable from 1,000 to 9999 m/s or to use pre-programmed wave velocity settings for 22 types of basic materials, including steel, stainless steel, aluminum, brass, copper, iron, cast iron, gold, silver, zinc, tin, nickel, titanium, epoxy resin, Plexiglas, PVC, ceramics and others. For precise testing, the gauge additionally allows user calibration on samples of the materials being measured. It is possible to select the resolution of the displayed measurement result: 0.1mm, 0.01mm, 0.001mm or 0.01in, 0.001in, 0.0001in. Measurement modes PE (Pulse-Echo), EE (Echo-Echo) as well as normal, scanning, differential operating modes, setting alarm thresholds with visual and audible signaling significantly simplify the analysis of performed tests and significantly affect the comfort of working with the gauge.

The thickness gauge is equipped with a memory that can store a total of 10,000 measurements in 100 files of 100 measurements each. The measurement results can be analyzed directly on the gauge or on a computer after transferring data via USB 2.0 and the supplied software.

The gauge features a 320x240 pixel color display with smooth brightness adjustment and automatic dimming after a user-specified time to save power. The display provides very good working conditions both indoors and outdoors in full sunlight. Working comfort is complemented by an ergonomic keypad with an intuitive key layout, allowing easy menu navigation and quick access to all gauge functions. The gauge is protected by a standard silicone cover or a reinforced silicone cover for harsher conditions. A durable carrying case is included to protect and carry the thickness gauge and all accessories.

 Technical specification

• Measuring range of the gauge 0.7 - 600mm, standard measurement in PE mode* (Pulse - Echo) for ultrasonic probes:
  • ultrasonic probe MPE7 7MHz from 0.7 - 200 mm,
  • ultrasonic probe MPE5 5MHz from 1.0 - 600 mm,
  • ultrasonic probe MEE5 5MHz from 2.0 - 600 mm,
  • ultrasonic probe MPE2 2.5MHz from 3.0 - 300 mm (damping materials, plastics),
  • ultrasonic probe MHT5 5MHz from 1.5 - 600 mm (high temperatures max 300 ⁰C).
• Measuring range of the gauge 2.5 - 100mm, measurement without protective coating, corrosion in EE mode* (Echo - Echo):
  • ultrasonic probe MEE5 5MHz from 2.5 - 100mm.
• Measurement of wall thickness of pipes with a diameter of ≥ 15mm*, ultrasonic probe MPE7.
• Measurement accuracy ± 0.4% ± 0.04mm, measurement units mm or inches selectable by the user.
• Smooth regulation of ultrasonic wave velocity for tested materials in the range from 1000 to 9999 m/s.
• Selection of the resolution of the displayed measurement result: 0.1mm, 0.01mm, 0.001mm or 0.01in, 0.001in, 0.0001in.
• Preset ultrasonic wave velocity settings for 22 types of materials.
• Memory for 10,000 measurements, grouped in 100 files of 100 measurements.
• Performing measurements in three operating modes: normal, scanning, differential.
• Possibility to set two alarm thresholds with visual and audible signaling.
• Possibility to enable / disable the audible signaling of keypad and system alarms.
• Calibration on a built-in standard with a choice of material and velocity.
• One or two-point calibration on external standards or test materials.
• Automatic compensation of the ultrasonic probe as a function of temperature and wear of the working part using the built-in steel block.
• Color TFT LCD display with a resolution of 320 x 240 pixels with adjustable backlight.
• Automatic dimming of the display to save power after a specified period of inactivity.
• Clock indicating the time, ability to set the date.
• Menu in Polish, English, German, French, Spanish, Italian.
• Data transfer to a computer via USB 2.0, cooperation with communication software.
• Automatic power off of the gauge after a set period of inactivity.
• Battery status indicator.
• "Power Package" containing power and charging module, two AA 1.2V NiMH rechargeable batteries, power adapter. The package enables powering the gauge from the power supply and charging the batteries in the gauge.
• Operating time when powered by two AA 1.2V NiMH batteries approximately 30 h. Operating time depends on the capacity of the batteries used and the thickness gauge settings selected.
• Charging time 1h - 4h, depending on the level of discharge, capacity and quality of the batteries used.
• Construction adapted to work in the field, housing protected by a silicone cover.
• Dimensions: 139 x 76 x 27mm; with silicone cover: 142 x 81 x 34mm; with reinforced silicone cover 143 x 85 x 39mm.
• The operating temperature range of the gauge is from -10 ºC to +50 ºC.
• Weight with batteries and reinforced silicone cover approx. 350g.

  * measuring ranges in relation to reference steel

Equipment

The gauge is offered in the following set:

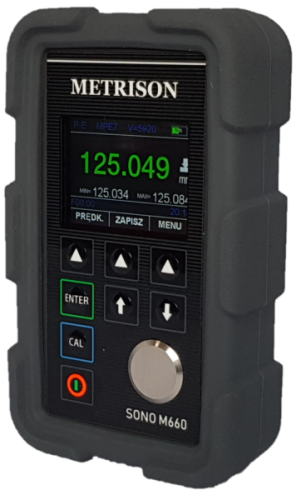

• ultrasonic thickness gauge SONO M660

• ultrasonic probe selected by the customer

• silicone protective cover selected by the customer

• transport case

• two AA 1.2V NiMH rechargeable batteries

• power supply

• USB cable

• communication software

• manufacturer's inspection certificate

• user manual in English

• warranty card.

Warranty - 24 months thickness gauge, 12 months accessories.
