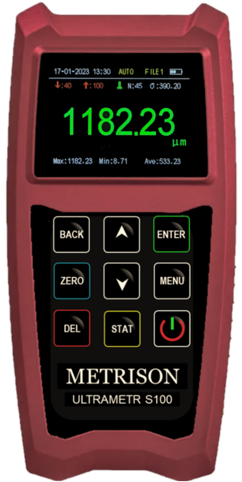

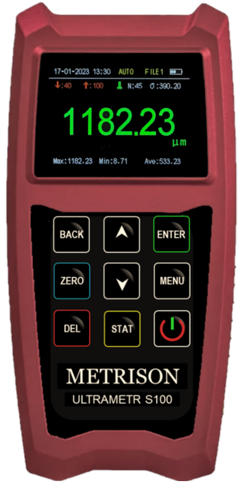

Coating Thickness Gauge ULTRAMETR S100

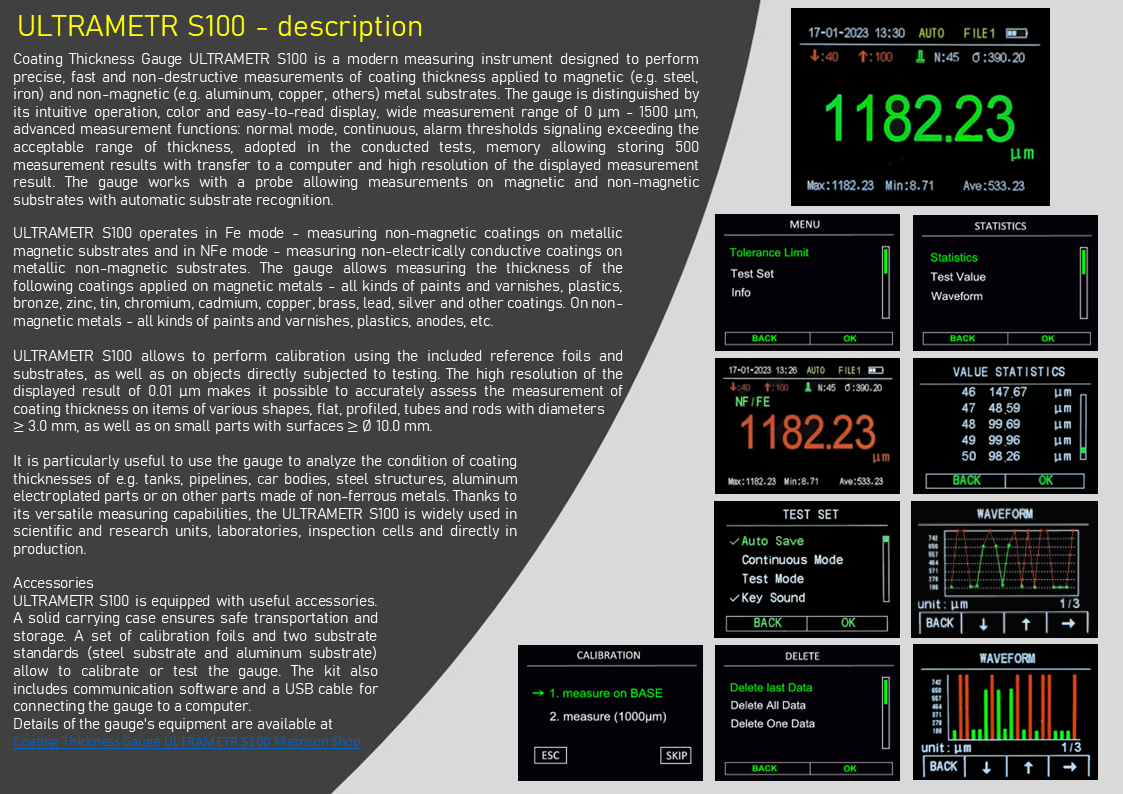

The ULTRAMETR S100 coating thickness gauge is a modern measuring device designed for precise, fast and non-destructive measurements of coating thickness applied to magnetic (e.g. steel, iron) and non-magnetic substrates (e.g. aluminum, copper, brass and others).

The gauge allows to perform professional coating thickness measurements using a wide range of functions such as:

• measurement on metal substrates: Fe (magnetic) or NFe (non-magnetic)
• automatic recognition of the substrate type or manual selection of the substrate type
• operating mode: normal or continuous
• measurement resolution: 1µm, 0.1µm, 0.01µm, imperial units 0, 01mils
•  one or two-point calibration
• memory with a total capacity of 500 measurement results
• statistics (number of measurements, average, maximum, minimum value, standard deviation and presentation of measurement results in a graphic version on the device's display)
• two alarm thresholds with visual and audible signaling, informing about exceeding the acceptable thickness range adopted in the tests

The gauge allows to measure the thickness of the following non-magnetic coatings applied to magnetic metals (e.g. steel, iron) :

• all kinds of paints and varnishes
• plastics
• brown coatings
• zinc
• tin
• chrome
• cadmium
• copper
• brass
• lead
• silver and others

The gauge allows to measure the thickness of the following non-conductive coatings applied to  non-magnetic metals (e.g. aluminum, copper, brass and others):

• all kinds of paints and varnishes
• plastics
• anodes and others

The ULTRAMETR S100 coating thickness gauge is widely used in industry, production, services, research and development units, laboratories and control units. It is perfect for measuring the thickness of protective coatings:

• metal industrial structures
• tanks and cisterns
• pipes
• boilers
• ship hulls
• car bodies.

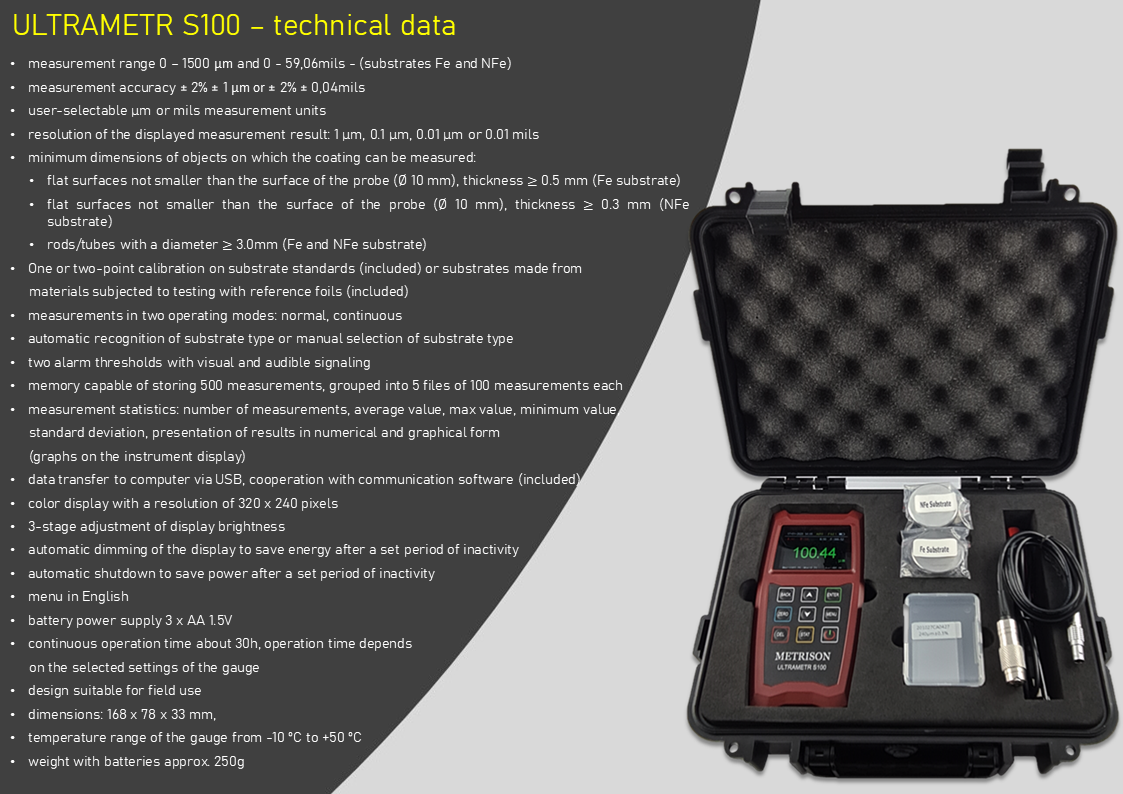

 Technical specification

• measuring range 0 – 1500 µm - (Fe and NFe substrates)
• measurement accuracy ± 2% ± 1 µm or ± 2% ± 0.04 mils
• measurement units µm or mils selectable by the user
• minimum dimensions of objects on which coating measurement is possible:
        flat surfaces not smaller than the surface of the probe (Ø 10 mm), thickness ≥ 0.5 mm (Fe substrate)
        flat surfaces not smaller than the surface of the probe (Ø 10 mm), thickness ≥ 0 .3 mm (NFe substrate)
        rods/pipes with a diameter of ≥ 3.0 mm (Fe and NFe substrate).
• resolution of the displayed measurement result: 1 µm, 0.1 µm, 0.01 µm or 0.01 mils
• one or two-point calibration on substrate standards (included) or substrates made
  of materials tested with reference foils (included)
• measurements in two operating modes: normal, continuous
• automatic recognition of the type of substrate or manual selection of the type of substrate
• memory for 500 measurements, grouped in 5 files with 100 measurements each
• measurement statistics: number of measurements, average value, max value, minimum value, standard deviation, presentation of results in numerical and graphical form (graphs on the instrument display)
• data transfer to a computer via USB 2.0,
• cooperation with communication software (included)
• two alarm thresholds with visual and audible signaling
• design adapted to work in the field

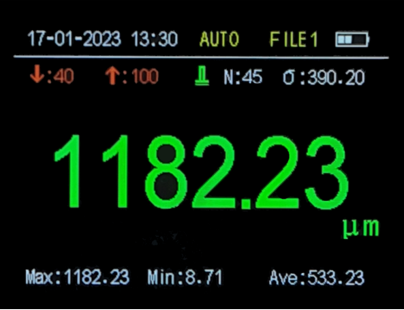

• color TFT LCD display with a resolution of 320 x 240 pixels
• 3-step display brightness adjustment
• automatic dimming of the display to save energy after a set period of inactivity
• automatic power off of the instrument to save energy after a set period of inactivity
• menu in English
• battery power supply 3 x AA 1.5V
• continuous operation time approx. 30h (operating time depends on the selected gauge settings )
• dimensions: 168 x 78 x 33 mm
• operating temperature range of the gauge from -10 ºC to +50 ºC
• weight with batteries approx. 250g.

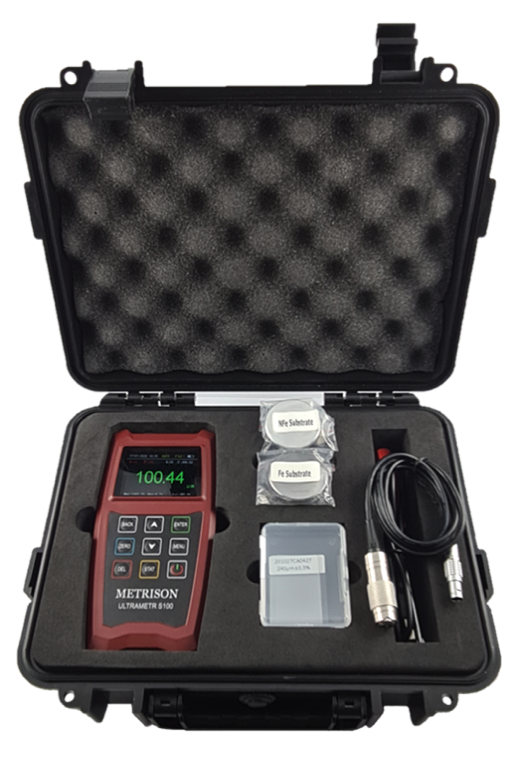

 Equipment

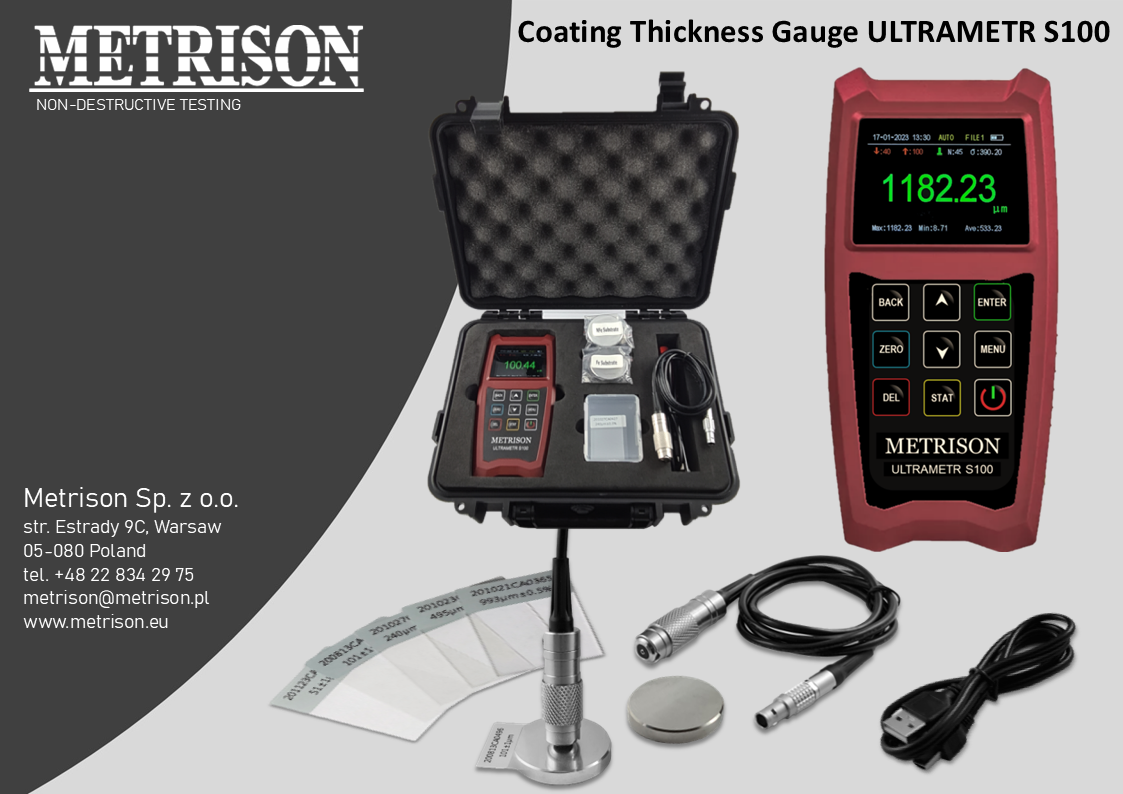

The gauge is offered in the following set:

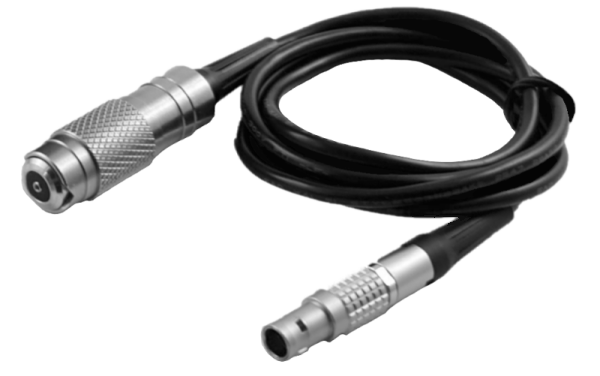

• probe S100
• transport case

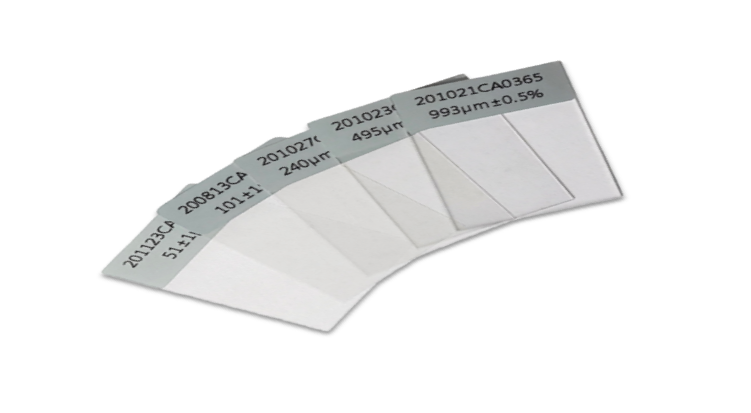

• a set of pattern foils

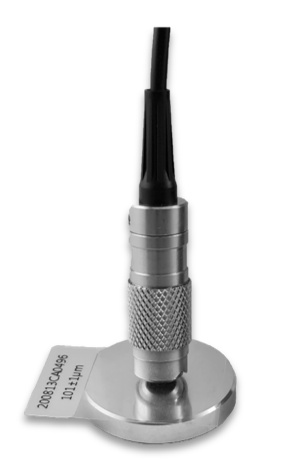

• two substrate standards (magnetic and non-magnetic substrate)
• communication software
• USB cable
• manufacturer's inspection certificate
• English manual
• Warranty Card.

 Warranty: 24 months, 12 months accessories.
